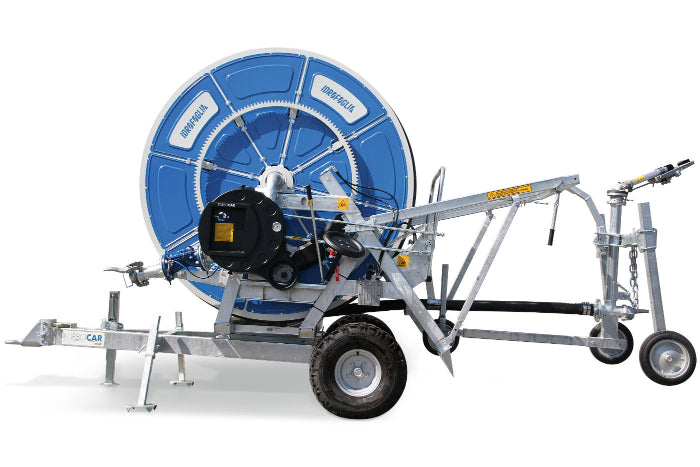

All possible options are available with hose lengths of up to 700 metres fully hydraulic or manually operated. We also offer dirty water systems.

Specifications & Options

• High Efficiency partial flow turbine drive direct coupled to 4 speed gearbox
  with adjustable over-run brake and PTO rewind facility
• Operating pressure gauge and VDO digital hose re-wind speed indicator (except
  where computer fitted)
• Drum diameter speed compensator
• Leadscrew driven hose layering guide
• Automatic mechanical gearbox disengagement at end of run, or improper hose layering
• Adjustable slow closing diaphragm shut-down valve
• Raingun trolley and staker leg lifting
• Heavy duty 360 deg turntable
• Running gear 2 wheels fixed axle
• Hot galvanized chassis, drum carrier, twin inlet pipe and fittings
• Standard Vari-angle raingun/sprinkler supplied with 3 taper bore nozzles
• Hydraulic lift arms

Optional Extras:

• Electric slow closing shut-down valve (in lieu of slow closing diaphragm
  valve)
• Low pressure dump diaphragm shut-down valve (in lieu of slow closing diaphragm
  valve)
• GSM mobile telecommunications and control system for the P450 controller
• Hydraulic front jack (in-lieu of standard mechanical jack) inc as standard on 4
  wheel G4D
• Hand start petrol engine pump to run the hydraulic features (in lieu of tractor
  hoses)
• 4 wheel tandem axle, 2 or 4 wheel hydraulically raised/lowered
• Supplementary staker feet mounted behind the towing eye
• Galvanised drum
• PTO driven compressor to remove water from the PE hose
• Twin crown wheel drum drive (standard on IG3D & IG4)
